| The all-new Xray M18T is truly the first mini truck that is capable of transforming from a racer to a monster truck. Imagine, a lightweight high performance 4x4 racer that can transform into a huge mini monster truck capable of handling all that you can find for it. ..Race it꿏ump it꿂limb it꿾ith the one and only M18T꿅rom XRAY꿕f course? The all new M18T is a unique 1/18 scale micro sized truck that was designed by the world famous Xray design team for all out fun and enjoyment. Whether you race it or bash it you are going to love the four wheel independent suspension oil filled shocks, high performance 4WD balanced chassis layout that features 22 high performance ball bearings. |
(click to enlarge) | |
| The expert craftsmanship and attention to detail that made the M18 so popular is carried over and is clearly evident everywhere on the M18T. The superb race proven driveline is capable of handling high loads and super fast motors. With a simple Monster conversion kit you can make this big little truck even bigger. The unique well thought out design allows the addition of four more oil filled shocks, (8 in total). 30% larger tires with a traditional monster tread pattern that helps you crush and climb all that dares to challenge the M18T. |
| Main features: | (click to enlarge) |
| ?/18 professional 4WD high load competition shaft driven micro truck 븄ptional conversion set transforms the truck into a monster truck 븁aximum efficiency drivetrain includes 22 high-speed ball-bearings 뷹ully independent front and rear suspension 븄il-filled coil-over shocks 븉ervo saver included 뷲djustable turnbuckles 뷹ront and rear adjustable ball differentials 뷲djustable shock position for damping adjustment 뷷asily-adjustable motor mount 뷵hassis accommodates 5 or 6 cell battery packs 뷷xtensive line of micro electronics and optional parts from Xray |
| M18T includes: | (click to enlarge) |

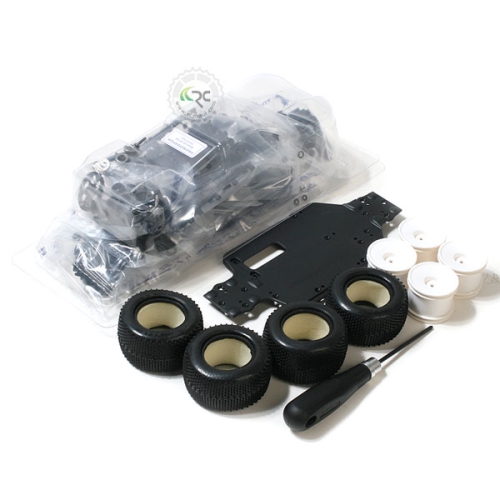

| ?set of low pin rubber tires + wheels ?1/18 micro racing truck body ?pinion set ?HUDY phillips screwdriver for comfortable assembly |
| Not included: | (click to enlarge) |
| ?radio system (transmitter and receiver) ?micro speed controller ?micro motor ?micro battery pack ?micro servo ?lexan paint ?CA glue |
| Technical specifications: | (click to enlarge) |
| - length (without body): 211mm - wheelbase: 150mm - front width (outside rims): 178mm - rear width (outside rims): 180mm - front caster: 12.3?BR>- weight: cca 295g - internal gear ratio: 2.5 |
(click to enlarge) | |
| The M18T features a high-performance drive train, including the shaft-drive 4WD drive train featured on the on-road M18. |
(click to enlarge) | |
| Both front and rear gearboxes feature adjustable ball differentials for maximum efficiency. Each ball differential includes two supporting ball-bearings for ultra smooth operation. |
(click to enlarge) | |
| The entire drive train is ultra efficient thanks to 22 high-speed ball- bearings which are very lightly oiled for maximum efficiency straight out of the box. |
(click to enlarge) | |
| Both front and rear suspensions are fully independent with maximum travel. The oil-filled coil-over shocks guarantee maximum performance in any racing condition. The shocks can be mounted at multiple positions on the arms and shock towers to easily adjust damping. Front and rear 1.0mm anti-roll bars included. |
(click to enlarge) | |
| The oil-filled coil-over shocks are not same - in front are short and rear are long. |
(click to enlarge) | |
| Rear shock tower with multiple shock mounting positions. |
(click to enlarge) | |
| The steering turnbuckles are fully adjustable and are manufactured from the premium world-renowned Hudy Spring Steel?to guarantee longest life and best quality. |
(click to enlarge) | |
| For precise steering, the center-positioned steering system runs on two ball-bearings. |
(click to enlarge) | |
| Front suspension with steering block. |
(click to enlarge) | |
| The kit includes a micro servo saver to protect the servo. |
(click to enlarge) | |
| The chassis accommodates 5 or 6 cell battery packs. A battery strap is included. |
(click to enlarge) | |
| Molded drive shafts with universal joints. |
| ||||||||||||||||||||||||||||||||||
(click to enlarge) | |
| Front steering block and wheel mounting detail. |
(click to enlarge) | |
| The adjustable motor holder holds the XRAY 300 Super Size motor. |
(click to enlarge) | |
| A set of pinions is included. |
(click to enlarge) | |
| Racing compound low pin rubber tires with foam inserts are included. |
(click to enlarge) | |
| White dish wheels accommodate any standard micro truck tires. |
(click to enlarge) | |

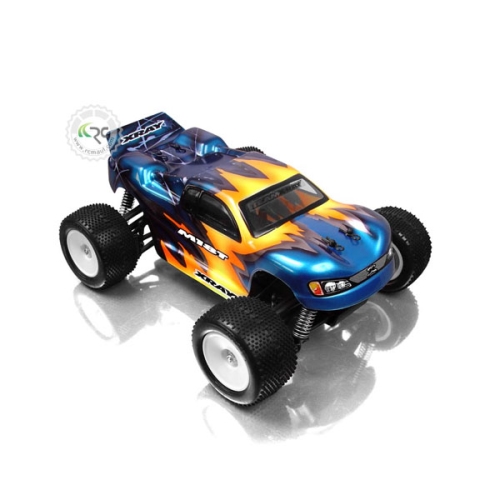

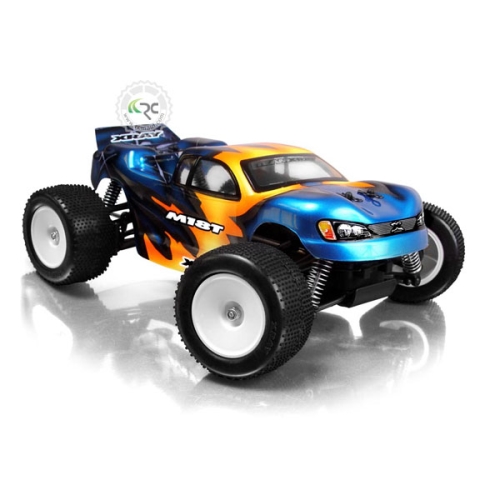

| XRAY 1/18 micro racing truck body included. The body is clear lexan body which requires painting. |
(click to enlarge) | |
| FREE Bonus! HUDY Philips screwdriver for comfortable assembly. |
