항공촬영 카메라
1.영상 음향 녹화
2.2G 메모리칩내장
3.동영상 촬영시간 최대 2시간
4.고화질 고음향
5.초소형 초경량 카메라무게 19g
6.모든헬기 비행기에 탑재가능

부산신항

 사용자 메뉴어리
              Directions for use

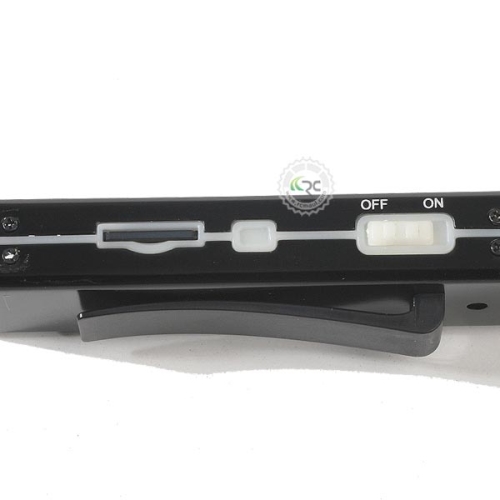

1.Switch ON/OFF: turn on (ON) and shut down (OFF)

2.Select DV video recording by the function key: the blue light will flash (video
recording is started) if pressing the round button once; pressing it twice will stop the
flashing of blue light (video recording is stopped and the video is stored)

3.Select REC for sound recording by the function key: switch on DV-007 directly, and
start sound recording as soon as the yellow light begins to flash; switch to DV by the
function key to stop sound recording and store the sound, while sound recording is
started again when switching to REC.

4.SD card: insert ID card according to the ID insertion diagram of DV-007, the SD card
whose capacity is no more than 8G is allowed.

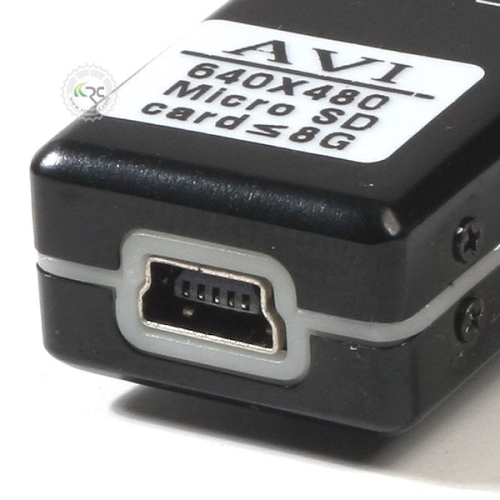

5.Charging: charging is started when inserting the USB interface into a computer;
switching off DV-007 will enable charging to be finished more quickly; the red light is
shut down when charging is finished.

6.USB connection: in the mode of DV, DV-007 will appear as a U disk in computer through
USB connection, and a direst access to its content is allowed. In the mode of REC,
access to its content is forbidden (online upgrade of extended function is reserved)

 Ⅱ Main features

Resolution: 640*480; stable follow shot; real AVI-format files with good recording
effect, can be played by any video player. When the battery is exhausted, the
video/sound in recording will be stored automatically before shutdown, no worries about
data lost.

 Ⅲ Product parameters

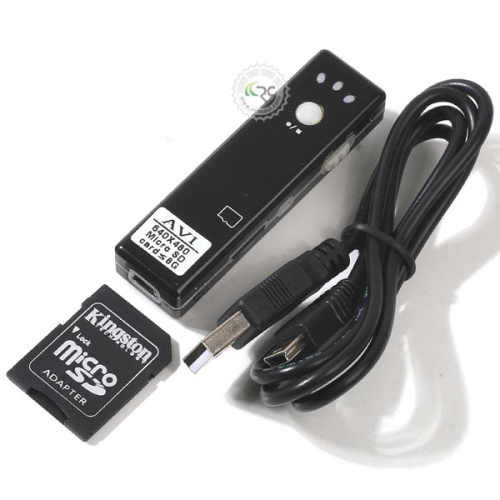

1. Size: 72mm * 20mm * 11mm

2. Weight: 19g

3. Storage: small SD card / T-FIASH (2~8G)

4. Battery: built-in 300mAh lithium battery, 2-hour battery life for each charging

5. Resolution: 640 × 480

6. Recording format: AVI

7. Video file: approx. 25MB per minute

8. Video file time: 1 hour for the 2G SD card (included)

Ⅳ If DV-007 fails to conduct video recording or sound recording normally, please check
the following items:

1.Direct shutdown after recording

2.Memory full

3.SD card is not inserted or in poor contact with DV-007

4.Low battery

Warm reminder:

Using this product in criminal activities is strictly prohibited, or else at your peril!
