TRA3905

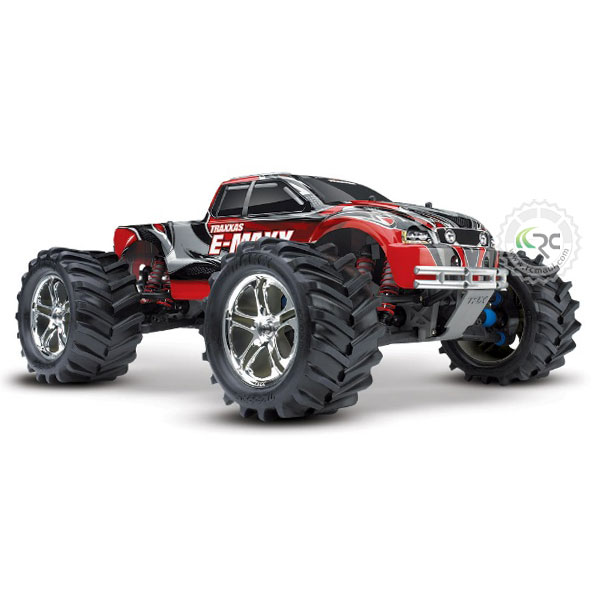

CB3903 Traxxas 1/10 Scale E-Maxx 16.8V 4WD Monster Truck RTR - 2010 신형



	NEW TQ 2.4GHz Transmitter and Receiver with Traxxas Link™ Two Traxxas Power Cell Batteries Included! 16.8 Volts of Pure Maxx® Muscle Top Speed: 30+mph!



The new Traxxas E-Maxx® takes 4WD monster truck thrashing to the next level of fun and excitement. To go along with the torquey 16.8-volt EVX-2 dual-motor power system, key improvements have been engineered into the suspension, driveline, chassis, and electronics to make this the toughest, most versatile E-Maxx ever. The new E-Maxx is equipped with Revo® sealed pivot ball suspension; dual-servo steering; an all-new transmission; Revo sealed differentials; a new, longer chassis; and waterproof electronics. And that’s just the start. Everywhere you look on E-Maxx Traxxas engineers have thoughtfully integrated new enhancements and features that make E-Maxx stronger, easier to use, and most importantly, more fun!



70% of the earth’s surface is covered by water. E-Maxx says… “Bring it on!”

E-Maxx is equipped with sealed electronics that eliminate boundaries and let you drive where you want to drive. E-Maxx lets you blaze new trails through water, mud, snow and other wet-running conditions that wouldn’t have been possible before. Since water is no longer the enemy, E-Maxx opens up a whole new world of 4x4 adventure and fun.



Traxxas TQ 2.4GHz Transmitter
and 5-channel Micro Receiver
The E-Maxx now includes the Traxxas TQ 2.4GHz High Output radio system with Traxxas Link™. This new system offers the unbeatable convenience of “no channels, no crystals” 2.4Ghz technology, and the long-range security of a high-output signal—but that’s just the beginning. The new, patent-pending Traxxas Link technology stores settings for up to 20 Traxxas Link-enabled models, with no naming or “model memory” settings required. Just power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQ 2.4GHz High Output radio is also fully adjustable; steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim.





Ready For Brushless
E-Maxx is equipped with an all-new transmission that’s been engineered to handle nearly 2 ½ times more torque than the original, and yet do it in a more compact package. Extra-wide gears, smart use of steel components, and the Revo®-Spec Torque-Control™ slipper all combine for the strength needed to handle the extreme power and torque that’s possible with today’s battery and motor technology. The design positions the motors closer to the chassis for a lower cg and improved handling. An optional bolt-in two-speed is available for shift-on-the-fly gearing options. Revo-Spec large diameter sealed driveshafts and sealed differentials are used for massively increased torque handling and long-lasting performance. Since the diffs are completely sealed, they can be fine-tuned with different oil viscosities to adjust the limited-slip action.

16.8-Volt Power System
The waterproof Traxxas EVX-2™ is optimized to deliver massive power from dual 7-cell battery packs. The EVX-2 packs a serious punch, belting out over 16 volts of power to the twin 550 high-torque motors. Titan 550 motors feature 30% longer motor armatures than a standard 540 size motor for monster big block torque. An internal fan helps keep the motors running at optimal temperatures for maximum power. Mash the throttle for wheelies on demand and absolutely mind-bending monster truck action that only E-Maxx can deliver. Designed by Traxxas, the EVX-2 features three drive profiles, thermal shutdown protection, and Traxxas high-current battery connectors. The EVX-2 also includes our exclusive, patent-pending Training Mode.™ This profile reduces the overall power output of the EVX-2 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. The EVX-2 is manufactured by Traxxas to ensure the highest level of quality and support, plus it’s backed by the exclusive Traxxas Lifetime Electronics Warranty.



Extended Wheelbase,
Low CG Chassis
The chassis design is all new with 30mm of increased wheelbase for improved stability. The new battery compartments position the batteries lower, angled in towards the center of the truck for improved handling and cornering stability. The new stronger chassis braces work together with a new center skid plate to greatly enhance chassis strength and torsional rigidity.



Easy, Fast Battery Installation
Traxxas engineers are always looking for ways to make Traxxas products the standard for ease of use. The new snap-lock battery hold downs speed battery installation. Press a lever to release, snap them in to lock. Securing your batteries takes just seconds and there are no clips to lose. The new configurable battery compartments are designed to easily accept either 6 or 7-cell battery packs and are scaleable to fit today’s battery technology and beyond. Precision metric hex hardware is used through the E-Maxx for easy servicing and a high-tech look.



Dual Servo Steering System
Dual, waterproof, high-torque servos drive a new heavy-duty bellcrank steering system. The integrated servo saver and smooth ball bearings combine with the dual-servo muscle to deliver the most powerful and precise Maxx® steering system ever.





QUICK FEATURES ON E-MAXX 3903

NEW TQ 2.4GHz Transmitter and Receiver with Traxxas Link™ Traxxas Power Cell Batteries Included! Waterproof electronics Waterproof servos & ESC All-new single speed transmission (Two-Speed optional) Revo®-Spec sealed pivot ball suspension Revo®-Spec sealed differentials Revo®-Spec sealed outer and center driveshafts All-new, low-CG chassis design Stronger chassis braces New transmission skid plate Scaleable battery compartments Snap-lock battery hold downs Dual-servo steering system Integrated servo saver Hex hardware throughout 3.8" mirror chrome Twin-Spoke wheels 3.8" Maxx® chevron tires



The Next Generation of Traxxas 2.4GHz Technology
Traxxas introduces the next generation of 2.4GHz radio system performance and its available now in the E-Maxx. The new Traxxas TQ 2.4GHz computerized High Output radio systems are equipped with superior Direct Sequence Spread-Spectrum (DSSS) technology, fully programmable features, and the convenience of patent-pending Traxxas Link™ automatic model recognition. Forget about crystals and frequency conflicts! The transmitters easy-to-use design provides the instant, worry-free, turn-it-on-and-go driving fun you expect from Traxxas, while also delivering a full compliment of pro-level tuning features for those who wish to explore the expanded tuning possibilities. The Multi-Function knob on the face of the transmitter can be programmed to control a variety of functions such as steering exponential, steering and braking dual rate, and throttle trim. Access is through a simple menu tree controlled by a two-button interface. Other tuning options include end point adjustment, servo reversing, and sub trim adjustment. Top-level performance is what you expect from Traxxas, so the new TQ 2.4GHz High Output pumps out a strong, clear signal for optimum range. The 13ms frame rate and near zero latency results in instant steering and throttle response along with precise, smooth control.

The exclusive Traxxas Link™ automatic model recognition software is a breakthrough in "model memory" that makes it easier than ever to enjoy multiple Traxxas Link enabled models without juggling transmitters or scrolling through complex menus searching for model names. Each time the transmitter is bound to a new receiver, it saves that receiver in its memory, along with all the model settings assigned to that receiver. The next time that transmitter and any previously bound receiver (up to 20!) are switched on, the transmitter automatically recalls the settings for that receiver. Just power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! Up to 20 Traxxas Link enabled receivers and 20 Traxxas TQ 2.4GHz High Output transmitters can be cross bound together making it possible to grab ANY transmitter and ANY vehicle from the group, switch them on, and start driving. Its perfect for when you have lots of vehicles you want to drive but dont want to have to keep up with which transmitter belongs to which model. Traxxas Link does it for you, seamlessly behind the scenes.


For more info about the TQ™ 2.4GHz High Output radio system, click here.



5-channel Micro Receiver
with Fail-Safe Security
The TQ 2.4GHz High Outputs micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link allows the receiver to recognize up to twenty TQ 2.4Ghz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated.



EVX-2 Electronic Speed Control Equipped with the Traxxas High-Current Connector!
The EVX-2 delivers an incredible 16-plus volts, from two battery packs, making 16.8-volt, twin-motor setups more powerful than ever! Designed by Traxxas, the EVX-2 features a completely waterproof design, three drive profiles, Thermal Shutdown Protection, and gold-plated, high-current battery connectors. The EVX-2 also includes patent-pending Training Mode™. This profile reduces the overall power output of the EVX-2 by 50% making it easier for young/new drivers to develop their control skills before unleashing full-power operation. The EVX-2 is manufactured by Traxxas to ensure the highest level of quality and support. Click here for more info.



Traxxas Power Cell Batteries Included!
E-Maxx includes two genuine Power Cell Battery Packs to make sure you experience all the performance that’s been engineered into your Traxxas model. Power Cell packs are optimized for free-flowing power and maximum punch with premium quality, low-resistance cells; flexible, silicone-jacketed 12-gauge wire; heavy-duty welded tabs; and Traxxas high-output, gold plated, high-current connectors. Seven cell packs give E-Maxx 16.8 volts of motivation for maximum speed, and precision assembly with attractive, individually wrapped cells and clear overwrap complete the Traxxas Power Cell package.



Traxxas High-Current Connectors
The EVX-2 electronic speed control comes equipped with two Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the dual batterys total power to the electronics keeping things running cool and at full capacity.


For more info about the Traxxas High-Current Connector click here.



Twin Titan® 550 Motors
Titan 550 motors feature a 30% longer motor armature than a standard 540 size motor for monster big block torque. An internal fan helps keep the motor running at optimal temperatures for maximum power.



Extended Chassis Design
For improved stability and handling characteristics, a new chassis was engineered from the ground up. The new E-Maxx chassis features a 30mm longer wheelbase while offering maximum ground clearance (over 4 inches). The additional chassis length allows the use of flat seven-cell stick battery packs. To keep the handling tight, new angled battery compartments sit low in the chassis for an extremely low center of gravity.



Quick Release Battery Hold Downs An Industry First! The unique chassis design features innovative quick release battery hold downs that install or remove in seconds without clips or tools. The battery hold downs are reversible for use with stick or side-by-side style battery packs. An optional battery strap is available for use with oversized batteries.



New Chassis Braces
with Transmission Skidplate
Heavy-duty chassis braces coupled with an integrated transmission skid plate provide rigid support that protects the center driveline and virtually eliminates power robbing chassis flex.



Heavy-Duty Transmission
More compact and nearly 2 1/2 times stronger than the original E-Maxx transmission, the new single-speed Brushless Ready™ transmission features an oversized steel idler gear and a Revo®-spec Torque-Control™ slipper clutch to handle the massive torque of high-performance brushless motors. To access spur and pinion gears quickly and easily, a unique two-piece gear cover can be removed and installed with a single hex screw. For additional tuning options an accessory single motor installation kit and two-speed gear sets are available.



Revo®-Spec Torque-Control™ Slipper Clutch
The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, lap after lap. Spur gears can be removed and replaced without altering the slipper adjustment. A center ball bearing maintains precise, long-lasting alignment with near friction-free running and virtually zero maintenance. Originally developed for Revo, the Torque-Control slipper is more than tough enough for E-Maxx. Only Traxxas has it!



Revo®-Spec Drivetrain
Building on the durability of the reliable and incredibly tough Revo drivetrain, E-Maxx incorporates sealed super-duty driveshafts and sealed pivot ball suspension. Heavy-duty axle carriers use large diameter rubber-sealed bearings for ultra-smooth running.



Sealed Revo®-Spec Differentials
New Maxx differential housings feature tunable sealed differentials with Revo internals for maximum tuning ability. Precision sealed with Traxxas X-ring silicone seals, E-Maxx differentials are designed for long-lasting performance and the ability to tune for specific running conditions. Built to handle extreme torque and power, these differentials offer unmatched versatility and toughness.



Dual Waterproof Steering Servos
Waterproof steering servos (#2056) use O-ring seals to keep the fun going when things get wet. The dual high-torque servos provide the muscle needed to turn the giant 3.8" Maxx® Chevron tires with incredible precision and speed.



Waterproof Receiver Box
A ground-breaking weather-sealed receiver box is another Traxxas innovation that puts E-Maxx in a league of its own. The antenna and servo wires route neatly to a special watertight seal (patent pending). To protect the receiver from water, snow, mud, and dust, a custom shaped blue O-ring seals the receiver box. Thanks to the unique design, the receiver can be removed for service, and even aftermarket receivers can be used, without losing the watertight properties of the box.



Powerful Steering System
Dual, waterproof, high-torque servos drive a new heavy-duty bellcrank steering system.
The integrated servo saver and smooth ball bearings combine with the dual-servo muscle to deliver the most powerful and precise Maxx® steering system ever.



Soft Compound 3.8" Chevron Tires
Pre-glued to 3.8" Mirror-Chrome Split-Spoke wheels, the soft compound Maxx chevron tires are designed to maximize performance for all-terrain traction. On dirt the chevron tread pattern claws for traction providing superior forward bite and massive roosts, and on pavement the forgiving side grip allows the tire to power-slide while maintaining a sure-footed neutral feel.



Double-Shear Captured Linkages
E-Maxx features 100% double-shear connections to all steering and toe linkages to capture and secure all rod ends for unmatched durability. A thick tie-bar on the rear toe links further increases the double sheer strength.





That Famous Maxx® Suspension
E-Maxx continues the Maxx tradition with its incredible WideMaxx™ 4-wheel independent suspension. Wicked long travel, nearly 4 inches at each wheel, is ready to take on just about the roughest terrain you can imagine. Eight oil-filled shocks (two at each wheel) deliver that plush feel and bottomless suspension travel the Maxx series trucks are famous for. The WideMaxx is fully tuneable for the track or extreme bashing with up to 10 shock-mounting positions, adjustable front caster angle, front and rear toe, and front and rear camber angles.



Oil-Filled Ultra Shocks™
Traxxas oil-filled Ultra Shocks are fully tuneable for race-inspired performance. The spring pre-load is adjustable via precise clip-on spacers making it easy to know that each shock is adjusted to the same spec. Rubber pressure bladders prevent air pockets and foaming common with bladderless designs. Double O-ring seals in the shock body keep shock oil in and air out for consistent performance pack after pack.



Tough Composite Components
Improved body mounts, universal Maxx differential housings, strengthened gray composite chassis, and steel reinforced bulkheads increase durability for hardcore bashing.



Hex Hardware
Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.



Rubber-Sealed Ball Bearings
Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dirt and nitro environments. They are used in all exposed locations on the truck and are virtually maintenance free.



ProGraphix® Bodies
The new extended wheelbase E-Maxx body comes fully trimmed and painted. Decals are also applied to save time and get you driving just minutes out of the box. Traxxas’ ProGraphix bodies are the hottest looking bodies around and are only available on Traxxas Ready-to-Race® models. Available in red, blue, black, and white.



Over 4" Inches of Center Ground Clearance
The unique E-Maxx chassis design offers maximum center ground clearance (over 4 inches) to eliminate the high-centering and chassis dragging that plague flat-chassis monster trucks. Plus it maintains that tall, authentic monster truck look.

•
