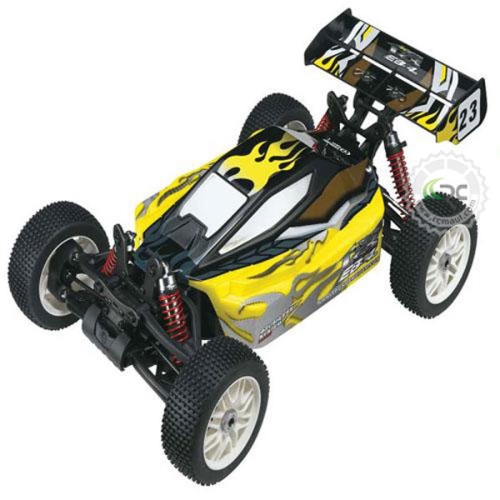

This is the Thunder Tiger EB-4 G3 1/8 Brushless Electric RTR Buggy. The EB4 S3, winner of the national ROAR Championship has proven it as the best R/C off road machine in the world. This performance can now be enjoyed by everyone in the form of “GREEN POWER”. Performance and power efficiency will no longer be compromised. The EB4 G3 utilizes the best combination of the transmission and brushless power system to create the most incredible force. In addition to this, the ACE RC cougar 2.4GHz radio system is also included right in the box to give you the most long range, convenient and reliable radio control. The EB4 G3 includes some outstanding features, such as weight distribution, compact chassis braces and excellent handling characteristics. The EB4 G3 is completely ready to run, with all components preassembled. All you have to do is to add your battery packs of choice and get ready to lay the smack down. The EB4 G3 comes equipped with an ACE RC BLC80C race spec ESC and super torque 2000KV motor combo, front and center CVD universals, fluid filled differentials and 17mm wheel hubs to mach up its powerful output.

Transmission: The front and rear transmission is the same as the ROAR national champion, the nitro EB4 S3, which comes equipped with hardened steel ring and pinion gears that make stripping a gear almost impossible. All the fluid filled diffs contain a full set of steel diff gears, in combination with full set of bearings throughout the drive train to ensure the smoothest power delivery.

Suspension: The front and rear suspension uses the same race proven composite nylon suspension arms as the nitro EB4 S3. The shock bodies are made of anodized aluminum with quick adjustment clips for ease of changes. The shock towers are made from 4mm thick aluminum plate with multiple shock mounting positions and the chassis is stiffened with a compact molded chassis brace and cover. You can also adjust the camber and toe settings with adjustable turnbuckles and suspension blocks to tune the chassis for optimum cornering and overall handling.

Brushless Power: The power system is equipped with a powerful 80A ESC and a 2000KV super brushless motor that provides super fast speed and huge torque. But the most important thing is that the ACE RC brushless power system enables you a longer play time due to less friction in the brushless motor comparing to other RTRs. Other multiple protection features, like low voltage cutoff protection, overheat protection, throttle signal loss protection, motor blocked protection and splash/dust proof cover make this ESC an incredible value.

Features:

• Suspension Based On National ROAR Champion EB4 S3
• Compatible with most EB4 S3 series parts
• Heavy Duty Steel Diff Ring/ Pinion
• Adjustable Steel Turnbuckles
• Compact Molded Chassis Brace And Cover
• New Hi-Flow Dynamic Body
• CNC Machined Aluminum Motor Mount
• CNC Machined Steel Pinion Gear
• Equipped Front/Center CVD Drive Shafts
• ACE RC Brushless Power System for 1:8 Scale Car
• Center Drive Shaft Guard For Cable Protection
• High Current Super Deans Plugs Included
• Anodized Aluminum Oil Filled Shocks
• 17mm Aluminum Wheel Hubs
• Rear, Center and Front Fluid Filled Differentials
• S2008MG Metal Gear High Torque Servo For Steering

IBL40/20 Motor Specifications:
Outer Diameter: 40mm
Length: 74mm
kV: 2000kV
Continuous Current: 75A Peak
Current: 150A
Motor Shaft: 5mm Heavy Duty Shaft
Sensorless: Yes

BLC80C Performance ESC Specifications:
Output: Continuous current 80A, burst current 380A.
Input: 6-12 cells NiMH/NiCd (3300mAh or higher) or 2-4 cells LiPo.
BEC Output: 5.75V/3A (Switch mode builtin BEC).
Resistance: 0.0006 Ohm.
Motor Supported: Sensorless brushless motors
Suitable Brushless Motor:
When working with 4 cells Lipo: >= 6.0T (KV<=2400)*
Suitable Car: 1/8 Buggy / Truggy
Size: 58mm (L) 46.5mm (W) 35mm (H)
Weight: 105g (Without wires)

Chassis Specifications:
Wheelbase: 320mm (min) 330mm (max)
Weight: 3160g
Length: 490mm
Width: 305mm
Height: 180mm
Gear Ratio: 12.7:1
Motor: 2000KV Brushless Motor

Includes:

• Pre-Assembled Chassis
• Pre-Printed HiFlow Dynamic Body
• ACE RC 1:8 Car Brushless Power System
• Cougar 2.4GHz 3CH LCD Transmitter and micro receiver
• 8kg/cm Metal Gear Steering Servo
• L Hex Wrench Set
• Cross Wrench for Changing Wheels

Needed to Complete:

• (8) AA Batteries for transmitter
• (1 or 2) 2S 1P Lipo batteries w/deans plugs
• (1) 3S 4S 1P Lipo battery with deans plugs
• Proper charger for battery type

*NOTE: The above T number is based on the value of a 40x74mm sized motor (Diameter=40mm, Length=74mm)
