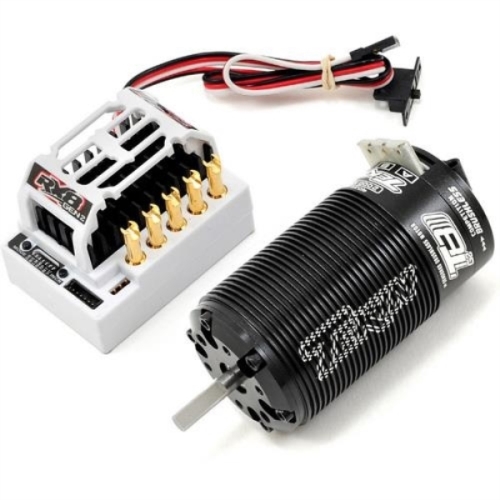

This is the Tekin RX8 GEN2 1/8 Scale Competition Brushless ESC/Motor Combo with an included Redline T8 GEN2 4030 2650kV buggy motor. The RX8 GEN2 brings updated features and next level performance to the popular RX8 series speed control. Designed using today's state of the art micro components, the GEN2 delivers advanced tuning options for the hardcore racer. Whether you are into large scale or short course, the RX8 GEN2 has what racers demand; reliability, precise control and unmatched power handling capability. Packed with features, the RX8 GEN2 delivers a programmable high-voltage BEC, an EZ Access Port for HotWire communication and Datalogging capabilities in a small sized package.

Tekin’s Redline T8 GEN2 motor defines large scale high performance racing. Featuring sensors for flawless, reliable on track operation, the T8 GEN2 provides pro level controlability and power. Capable of both sensored and sensorless operation, the T8 GEN2 motors are the leading edge of large scale RC motor technology. Utilize the torque and speed of your T8 to propel you across the finish line.

Features:

• RX8 GEN2
• Ultra-smooth and Precise Throttle and Braking Control
• Compatible with Sensored/Sensorless Brushless and Brushed Motors
• Easily Access Programming, Anywhere, Anytime
• Datalogging Capability
• High Voltage Programmable BEC
• EZ Access HotWire Programming Port
• HotWire PC Interface for Advanced Programming and Updating
• D2: Dual Drive Mode Technology
• On-Board Temperature Indicator
• Removable/Replaceable Cooling Fan
• HDAC: High Density Copper PCB's
• Sensor Plug for Precise Commutation with all Motors
• Gold-plated Solder Posts for Easy Wire Replacement
• Self Test Diagnostics and Factory Reset
• Pit Tune Mode
• DGF2: Digital Glitch Filtering V2
• QuickTune Programming
• One-Touch Radio Calibration
• T8 GEN2
• CNC Machined 6061 T6 Billet aluminum Ribbed Heatsink Can
• Sensored and Sensorless operation
• High Current Solder Tabs
• Rebuildable Design
• Neodymium Sintered Magnet
• Precision Engineered for Maximum Energy Conversion
• Dual-Plug Sensor Wire Harness

ESC Programming Features

• High Voltage BEC (6.0v/7.4v)*
• Drag Brake (13 steps)
• Brake / Reverse Strength (13 steps)
• Current Limiter (none + 12 steps)
• Neutral Width (13 steps)
• Timing Profiles (5 preset - 2 custom*)
• Adjustable Throttle and Brake Minimums
• Custom Throttle Curves
• Motor/Reverse Type: Brushless, Brushed, No Rev, Rev Delay
• Voltage Cutoffs (none, 2S, 3S, 4S, 5S, 6S, Custom)
• Save, Load and Share custom ESC setup files*
• Save, Load and Share Data Log files*
• Extensive Tuning via Tekin HotWire PC Interface

*Requires HotWire Sold Separately

RX8 GEN2 Specifications
Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo
BEC: 6.0V / 7.4V 7 Amps
Motor Limit Brushless Mode: No Limit
Motor Limit Brushed Fwd Only Mode: No Limit
Motor Limit Brushed Fwd/Rev Mode: No Limit
Max Current: 220 Amps per phase
Timing Profiles: 7 choices (on board)
Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay
Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay
Dimensions: 1.5x2.2x1.4in (38x55.8x25.5mm)
Weight: 2.7oz / 76.5g

T8 GEN2 Specifications:
KV Rating: 2650
Shaft Dimensions: 19 x 5mm w/flat
Motor Diameter: 40mm (42mm including fins)
Motor Length: 69mm
