• Officially licensed Ford Fiesta body design and Ken Block/Monster Energy graphics
• Officially licensed Volk Racing TE37 wheels (1.9” diameter, 12mm hex)
• Unique green pushrods and toe links, exclusive to the Ken Block Gymkhana Fiesta
• Pre-glued, low-profile Gymkhana-compound slick tires molded in a pecially formulated rubber compund for authentic Gymkhana performance and handling
• Impact absorbing foam front bumper
• Adjustable height body mounts
• TQ 2.4GHz High Output transmitter with Traxxas Link™
  • Automatically stores and loads settings for up to 20 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required.
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • 5-channel micro receiver with dual channel-1 inputs
• Race-winning, F1-inspired Revo^® suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
• Powered by the Velineon^® Brushless Power System
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Velineon VXL-3m Electronic Speed Control

  • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
  • Sport Mode – Forward / Brake / Reverse
  • Race Mode – Forward / Brake
  • Training Mode™ - 50% Forward / Brake / 50% Reverse (patent pending)
• Velineon 380 Brushless Motor

  • High-performance sensorless design
  • High-strength Neodymium magnets
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
  • Gold-plated 3.5mm bullet connectors
• Digital High-Torque Waterproof Micro Steering Servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials—an industry first in 1/16 scale
• Torque-Control™ slipper clutch system
• Telescoping universal-joint driveshafts
• Rubber-sealed ball bearings
• External gear cover with easy slipper access
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
• Suspension is precision tuned for on-road performance
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery compartments with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Full line of genuine Traxxas accessories available
• The Ken Block Gymkhana Fiesta is backed by unparalleled Traxxas support and parts availability





KEN BLOCK GYMKHANA FIESTA (#7309) SPECS

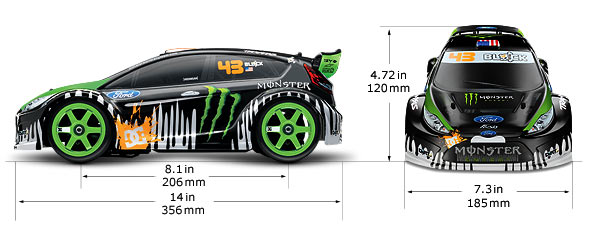

Length:   14" (356mm) Front Track:   7.3" (185mm) Rear Track:   7.3" (185mm) Weight:   34oz (964g) Height (overall):   4.72" (120mm) Wheelbase:   8.1" (206mm) Wheel Diameter   1.9" (48mm) Shock Length (front/rear):   44mm / 44mm Front/Rear Tires (glued):   Gymkhana-Compound Slicks Front/Rear Wheels:   Officially Licensed Volk TE37 in 'Monster-green' Electronic Speed Control:   Waterproof Velineon® VXL-3m ESC Motor (electric):   Velineon® 380 Brushless Transmission:   Heavy-Duty with Steel Idler Gear Gear Ratio (internal):   5.04:1, (reversed input: 9.72:1) Overall Drive Ratio:   7.32:1 (stock, out-of-box) Differential Type:   Hardened Steel Bevel, Sealed Gear Pitch:   48-Pitch Chassis Structure/Material:   Molded Composite Nylon Monocoque Brake Type:   Electronic Drive System:   Shaft-Driven 4WD Steering:   Bellcrank Radio System:   TQ™ 2.4GHz High Output with Traxxas Link™ Top Speed:   30+mph (50+mph with dual batteries)* Skill Level:   2 Included Batteries:   6-cell NiMh with Charger Required Batteries:   4 "AA" (transmitter)





VXL-3m WATERPROOF ESC SPECIFICATIONS

Input voltage:   6 to 12 cells NiMH, 2S to 3S LiPo Case Size:   26.5mm W x 46.5mm D x 22mm H Weight:   38 grams Motors:   Sensorless Brushless Motor Limit:   None On Resistance:   0.0005 Ohms PWM Frequency:   12,000Hz Peak Current:   326A Continuous Current:   52A BEC Voltage:   6.0V DC Motor / Battery Wiring:   16-Gauge Maxx® Cable Transistor Type:   MOSFET Low Voltage Detection:   2-Stage indicators, switchable (on or off) Thermal Protection:   2-Stage thermal shutdown Profile selection:   Sport Mode: 100% fwd, 100% brakes, 100% rev Race Mode: 100% fwd, 100% brakes, no rev. Training Mode: 50% fwd, 100% brakes, 50% rev. Single-button setup:   Yes, Traxxas EZ-Set® Battery Input Connector:   Traxxas High-Current Connector Motor Connector:   TRX 3.5mm Bullet Connectors

MODEL 7309: Ken Block Gymkhana Fiesta, Fully assembled, Ready-To-Race^®,
with TQ™ 2.4GHz High Output radio system with Traxxas Link™, Velineon^® 380 motor,
VXL-3m ESC, 7.2 volt NiMH battery & charger, and ProGraphix^® painted body.

*One 6-cell pack included with model. Additional 6-cell NiMH battery pack sold separately.





•
