사용가능 전압: DC 11~15V
※자동차 12V납축전지로 사용이 가능하며 파워서플라이사용시 200W이상의 제품을 사용하시길 권장합니다

각 채널당 충전가능 배터리수 : 1-15 Ni-xx / 1-6 Li-xx / 1-10 Lead acid cells (2~20V)


리튬계열의 배터리 밸런싱 커런트A: 300mA


니카드/니켈수소충전방식 : 자동, 네거티브 델타피크방식

크기:  가로 225.4mm 세로158.6mm 높이62.4mm

총중량: 1.09kg

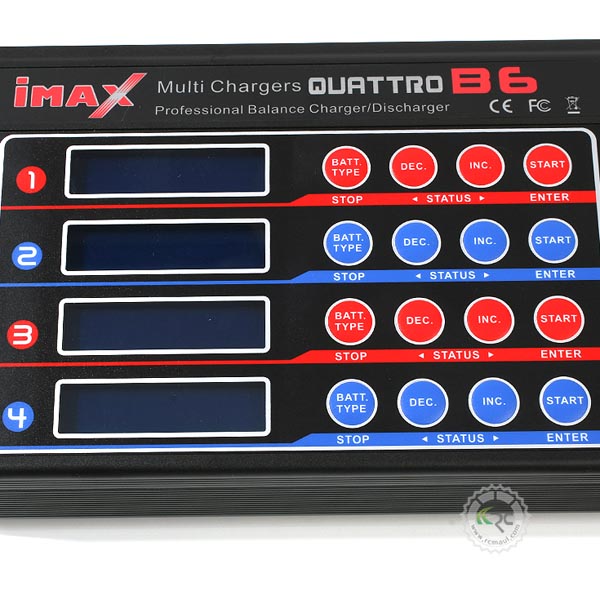

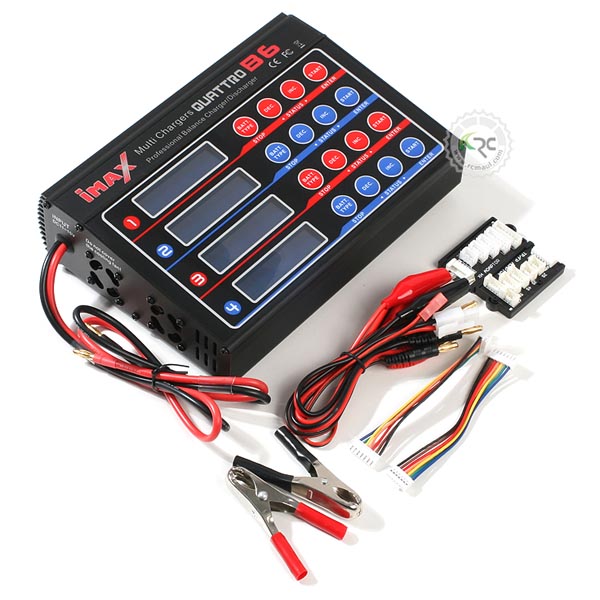

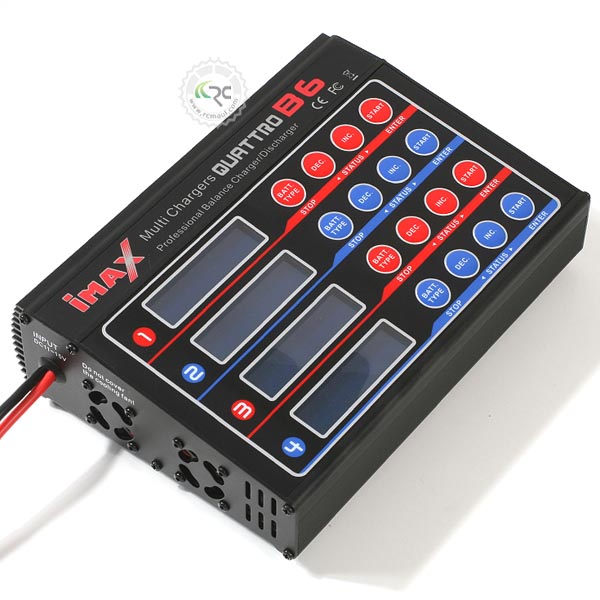

[IMAX] Multi Chargers QUATTRO B6

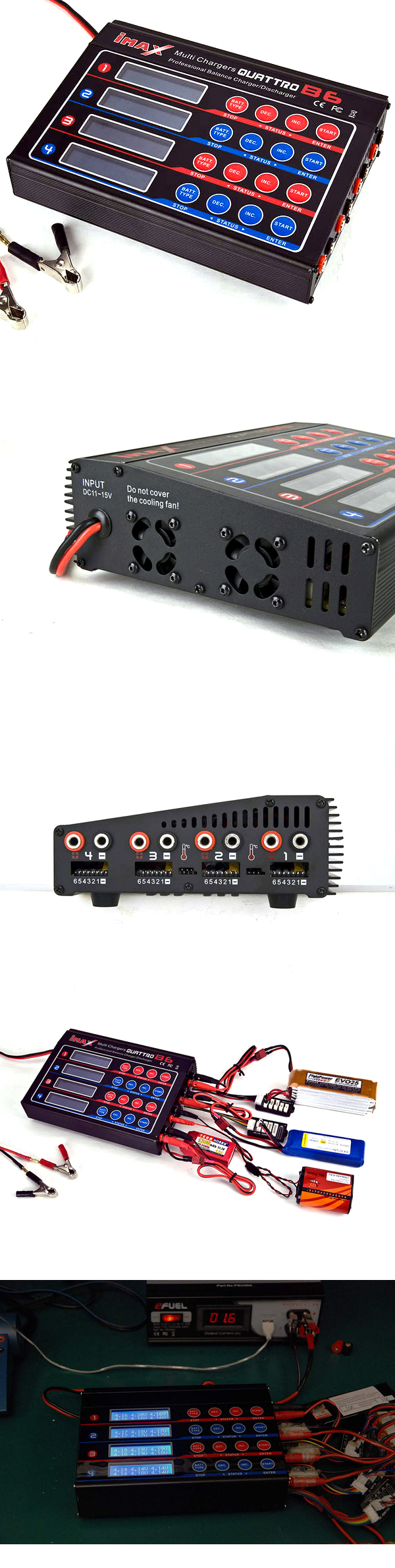

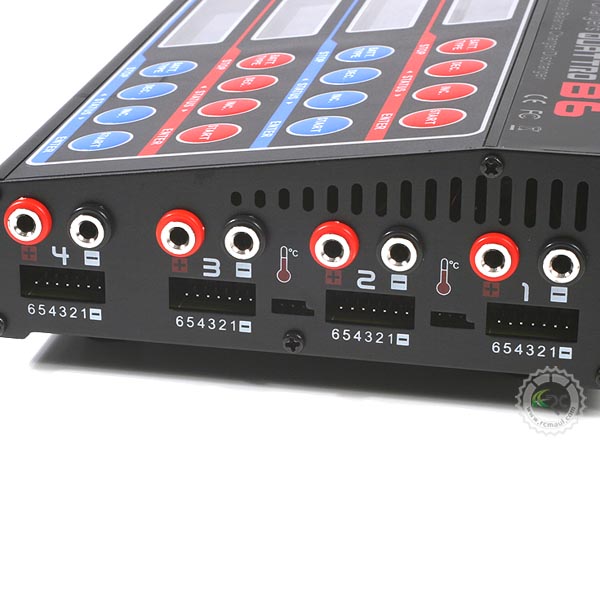

IMAX Multi Chargers Quattro B6 can charge four batteries packs simultaneously no matter what battery type you have.

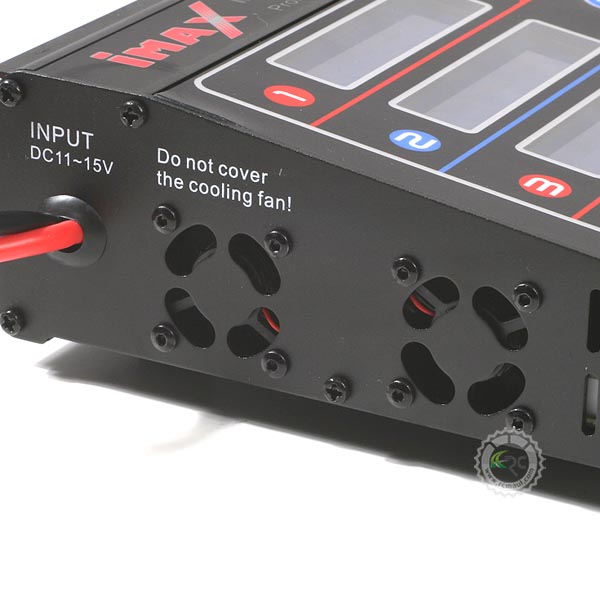

The Quattro B6 is equipped with 4 high performance microprocessors to charge each battery individually. Its efficient cooling system ensures safe operation throughout the charge or discharge process.
With the Quattro B6 youre able to balance charge a lipoly pack on Port-1 while series charging a LiFePo4 or NiMH battery on Port-2. All ports work independently of each other.

Specification:
Operating voltage range: DC 11~15V
Power source: 12V DC (car battery) / AC mains PSU (>200Watts)
Charge power: 50watts, current is regulated accordingly
e.g. 11.1V battery, charge current approx. 4.5A
e.g. 22.2V battery, charge current approx. 2.2A
Discharge power: 5 Watts, current is regulated accordingly
Cell count : 1-15 Ni-xx / 1-6 Li-xx / 1-10 Lead acid cells (2~20V)
Current drain for balancing li-xx: 300mA
Charge termination Ni-xx: Automatic, negative Delta Peak method
Charge termination Lead acid & Li-xx: Automatic, voltage dependent, CC-CV process
Dimensions: 225.4x158.6x62.4mm
weight: 1.09kg

A/S관리: 제품마다 고유번호 적힌 홀로그램 스티커가 붙어 A/S가 가능합니다. 유사품에 주의하세요. ^^
