Designed for and named after one of the top FPV pilots in the world, the new QAV180 Carbon Fiber FPV Quadcopter airframe is new go to frame for acrobatic FPV sessions. The QAV180 is designed to be the smallest possible airframe while comfortably supporting 5" props and 220X size motors. The assembled kit containing Carbon Fiber Plates



Like it's popular 'big brother', the QAV250, the QAV180 utilizes high quality 3K carbon fiber that is precision machined for a superb fit-and-finish. The QAV180 is an awesome FPV racer and acrobat. The frame is designed to mount a mini 26mm FPV camera at a range of angles. Alternatively, the frame also includes a mounting plate to mount standard 32mm board cameras at a fixed 20 degree angle.



The airframe is designed to support both 3s or 4s lipo setups and can comfortably carry 1000mah and 1500mah lipos.



Features



Full 3K Carbon Fiber airframe featuring a solid 3mm thick "Unibody" main plate.

Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).

"Bumpers" on the end of the arms to protect the motor during a crash, just like the QAV250.



Easy Lipo Access (suggested Lipo is a 1500mah 3 or 4s)

Support for 32mm board cams as well as 26mm cams in cases

Support to carry HD camera (such as the GoPro 4, Mobius, or GoPro Session) with optional camera vibration mount (not included)





The QAV180 does not exhibit any vibration in the on-board FPV camera signal. For pilots that wish to equip their QAV180 with a Mobius, GoPro or GoPro Session, Lumenier offers a vibration isolation camera mounting kit.



Package Includes



1x QAV180 carbon fiber air frame

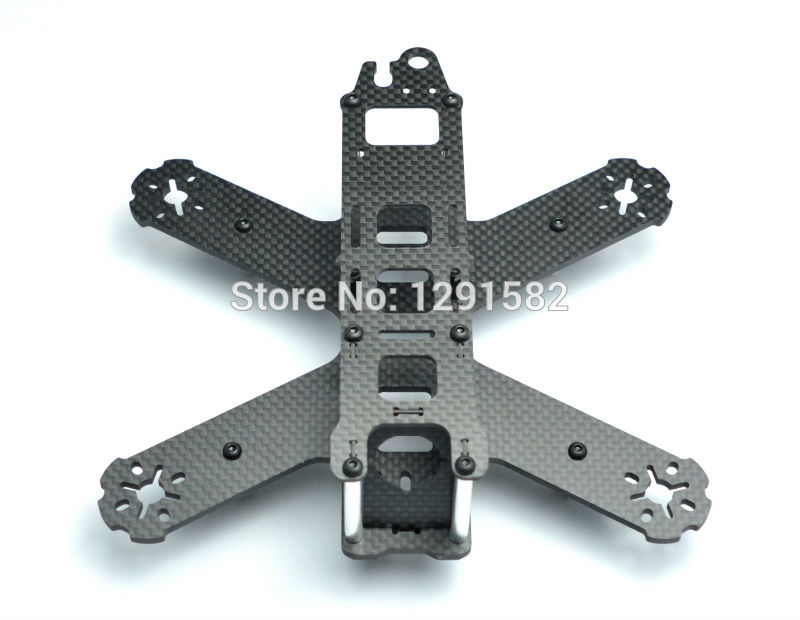

<실물사진>
